CABLE GLAND & CABLE CLEAT SELECTOR CHART CONDUCTOR SIZE (MM SQUARED) NO. OF CORES INDOOR OUTDOOR CLEAT SIZE BW GLAND CW GLAND 2 20S 20/16 5 3 20S 20/16 6 4 20S 20S 6 7 20S 20S 7 12 20 20 8 19 25 25 10 27 32 32 11. Cable sizes must be checked prior to gland selection 6 4 2.5 1.5 GLAND TYPE 50 35 25 16 10.
CC6 Armoured Cable Cleats Price per cleat, 100 Bags available
Telcleat Ref. 385AA Series. Aluminium Claw & 2 Bolt Ref. 370BA Series. Polyamide 2 Bolt Sing Way Ref. 373AA Series. Polyamide Trefoil Ref. 375AB Series. Polyamide Cable Blocks Ref. 383AA Series. E-Tech Components • Unit 14 Park Court • Sherdley Business Park • Sullivans Way • St.Helens • WA9 5GZ • UK tel: +44 (0)1744 762 931 • fax.
Electramania Cable Terminations and Glanding Guide
This chart details the specifications of SWA (Steel Wired Armoured) cable one-piece single fixing cable cleats.It includes key information such as cleat sizes, corresponding cable diameters they can secure and the pack quantities that they come in, although we sell them individually for your convenience.
Armoured Cable Gland Chart Hot Sex Picture
Cable Cleat Selection. Cable cleat selection takes into account numerous factors listed below, and ideally if CMP Products can be supplied with the following: cable construction - type, ratings and diameter, system design, support structure and environment; it will then be possible to provide further advice on the correct type of cable cleat.

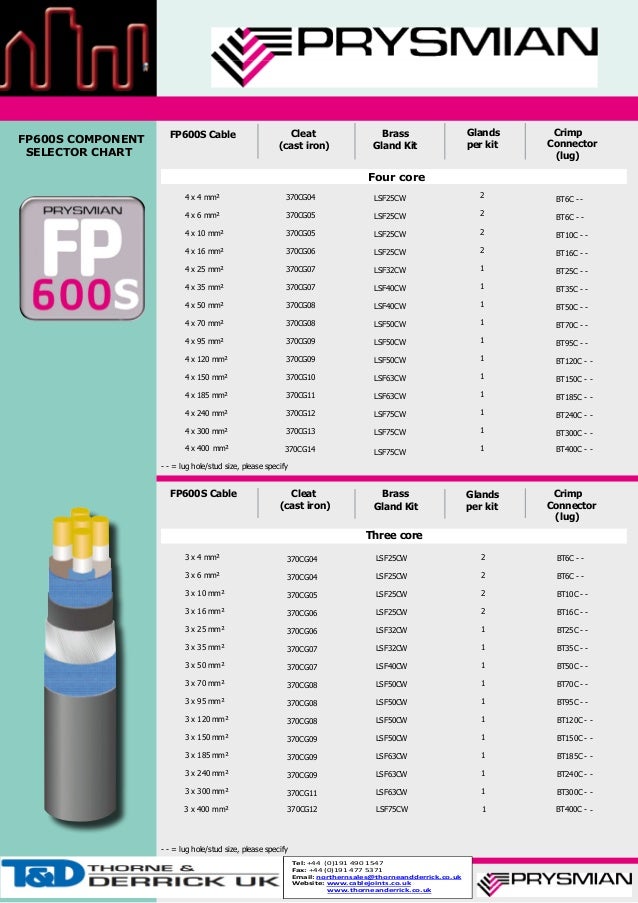

Prysmian FP600S Cable (FP) Fire Resistant Cable Cleats, Cable Gland…
Cable Management - Gland Selection Chart. The gland sizes recommended in this chart are for guidance only. Gland size is based on nominal dimensions or overall diameter, armour diameter and thickness of oversheath of the cable. In accordance with BS 6121 actual cable dimensions must be used. GreenBrook glands are manufactured in accordance with.
Cable Cleat Size Chart My XXX Hot Girl
Vessel SAN FELIPE is a Container Ship, Registered in Marshall Is. Discover the vessel's particulars, including capacity, machinery, photos and ownership. Get the details of the current Voyage of SAN FELIPE including Position, Port Calls, Destination, ETA and Distance travelled - IMO 9698628, MMSI 538005732, Call sign V7GN7
SWA One Piece Single Fixing Cable Cleats ExpertElectrical.co.uk
Cable Bedding Diameter H min max 5 36.0 44.5 3C x 35/50/70 6 44.5 55.0 3C x 95/120/150 7 55.0 63.0 3C x 185/240 Applicable to: HV Tape Armoured Municipal & Petro Glands (Lead Sheath SWA Cables only) Gland Size Lead Bedding Diam Approx. Suitable Cables (#C x mm^2) FOR ARMOURED CABLE A min max min max 00 6.5 8.5 0s 6.5 8.5 0 8.5 12.6 1 12.6 15.7.
Swa Cable Cleat Chart
Suitable for SWA and heavy duty cables. Ref No. Cable Diameter Ø (mm) Stud Hole Size. Box Qty. Dimensions (mm) Ref No.
SWA Cable Cleat Attach to Buildings for Supporting Armoured Cables
CC8 Armoured Cable Cleats are used to clip the cable to walls, surfaces and structures. As these cleats are made from a hardwearing plastic, these cleats are suitable for indoor and outdoor use. Below is a short list of dimensions and specifications: Diameter (Inches): 0.8. Diameter (mm): 12.7. Cable sizes supported: - 10mm 2 Core Armoured Cable.
Buy S.W.A. Cable Cleats Size 9, Online from Websparky
A cable gland (or as sometimes called; a cable fitting) is a mechanical device used to securely attach the end of a cable to an instrument, junction box, or piece of equipment. - To maintain the ingress protection of the piece of equipment (minimum of IP54 for 'e' and 'n' type enclosures. Where the enclosure wall thickness is less than 6mm a.
Cable Gland Chart
This chart covers all the armoured cables from the smallest 1.5mm all the way up to the massive 400mm SWA cables. Single core up to 48 multicore armoured cable. You will also need to know if the gland is for indoor or outdoor for indoor you use a BW prefix and for the outdoor a CW prefix, so for example a 4.0mm x 4 Core Cable would need a.
Cable Gland & Cleat Selection Chart PDF
Cable glands are available in a range of sizes from CMP. The below tables are provided as examples for cable gland size information for armoured and unarmoured cable glands: Armoured Cable Glands ( T3CDS shown as example) Cable Gland Size. Available Entry Threads C (Alternate Metric Thread Lengths Available) Cable. Bedding.
Aluminium Cable Chart Labb by AG
Valparaíso (/ ˌ v æ l p ə ˈ r aɪ z oʊ /, Spanish: [balpaɾaˈiso]) is a major city, seaport, and educational center in the county or commune of Valparaíso, Chile.Greater Valparaíso is the second largest metropolitan area in the country. Valparaíso is located 111.8 kilometres (69.5 mi) northwest of Santiago and is one of the South Pacific's most important seaports.
Cable Gland Sizing Charts SWA Electrical circuit diagram, Gland, Chart
Cleats & Clamps Sizing Charts cable size 1 core 2 core 3 core 4 core 5 core 6 core 7 core 8 core 1.5 - NO.5 NO.5 NO.6 NO.6 NO.8 NO.9 NO.10. SWA Cables Aluminium Conductors Stranded Copper - SWA - PVC. FIRST FOR PERFORMANCE . Title: Cleat_Clamps_Sizing_Chart.indd Created Date:
Cable Cleats,Aluminium Metal HV Cable Cleats Manufacturer
of cable glands, cable cleats and cable accessories for customers around the globe.. CABLE FORMATION NO OF SIZES 10 12 8 9 12 5 11 10 15 15 10 15 15 10 15 15 10 15 15 28 24 24 16 23 24 13 FIXINGS One Bolt Fiing One Bolt Fiing To Bolt Fiing To Bolt fiing One Bolt Fiing To Bolt Fixing One Bolt Fiing One or Two Bolt.
Doncaster Cables Armoured Cable Cleats No 4 7.7 to 10mm Toolstation
CC20: 120mm 4 Core, 185mm 3 Core. Here at Quickbit, we stock and supply all of these Cable Cleats and armoured cable sizes. If there is a type of cable or cable clip you cannot find among the range we have available, please give our sales team a call on 01244 288138 or send an email enquiry to sales@quickbit.co.uk.
.
